Series 116 (118 Bis)
Polyamide 6 wheels.Hub on roller bearings, shielded ball bearings or plain bore.

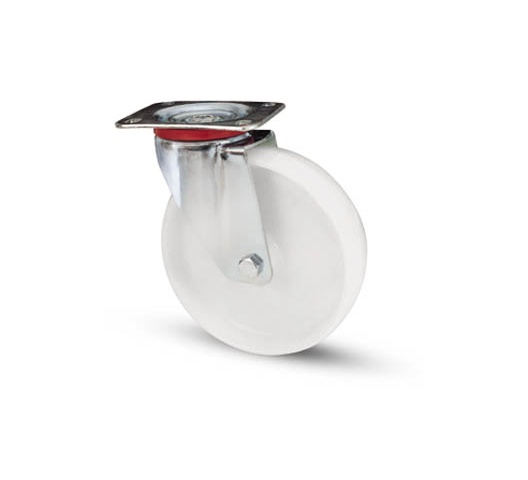

Medium duty castor
In zinc-chromium plated pressed steel, turning on double rim of balls. Assembled with self locking nut. Dust cover ring on the balls.
SKU SIZE
| AVO1183 | 80x30mm |
| AVO1184 | 100x30mm |
| AVO1185 | 125x40mm |
| AVO1186 | 150x40mm |
| AVO1188 | 200x50mm |
 |
 |
 |
 |
 |
 |
 |
 |
| 60x35 | 100x85 | 80x60 | 8,5x12 | 37 | 89 | 120 | 150 |
| 80x30 | 100x85 | 80x60 | 8,5x12 | 37 | 108 | 120 | 150 |
| 100x30 | 100x85 | 80x60 | 8,5x12 | 37 | 128 | 120 | 150 |
| 125x40 | 100x85 | 80x60 | 8,5x14 | 42 | 155 | 170 | 220 |
| 125SEx40 | 100x85 | 80x60 | 8,5x12 | 37 | 154 | 130 | 170 |
| 125x40 | 140x110 | 105x80 | 11x16 | 42 | 155 | 170 | 220 |
| 150x40 | 100x85 | 80x60 | 8,5x14 | 45 | 181 | 200 | 250 |
| 150SEx40 | 100x85 | 80x60 | 8,5x12 | 37 | 179 | 130 | 170 |
| 150x40 | 140x110 | 105x80 | 11x16 | 45 | 181 | 200 | 250 |
| 160x40 | 140x110 | 105x80 | 11x16 | 55 | 197 | 300 | 380 |
| 175x50 | 140x110 | 105x80 | 11x16 | 55 | 208 | 300 | 380 |
| 200x50 | 140x110 | 105x80 | 11x16 | 55 | 235 | 300 | 380 |
| 250x48 | 200x160 | 150x115 | 14x26 | 85 | 302 | 400 | 500 |
Specifications
| SKU | SERIES 116 (118 BIS) |
|---|
