Series 15 (25A)
Wheel coated with AVOPRENE polyurethane thread 91 Sh A. Black painted, mechanical cast iron centre. Hub on shielded ball bearings assembled with central spacer.

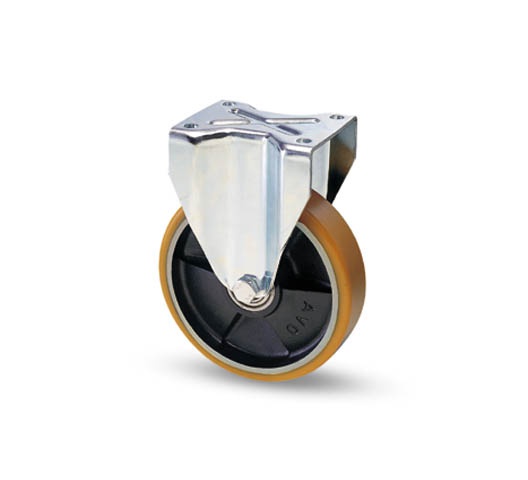

Heavy duty castor
In zinc-chromium plated pressed steel, high thickness, turning on double rim of balls fitted in temperate thrust-bearings. Assembled with self locking nut.
| SKU | SIZE |
| AVO254A | 25A 100x25mm |
| AVO255A | 25A 125x30mm |
| AVO256A | 25A 150x40mm |
 |
 |
 |
 |
 |
 |
 |
 |
| 80x20 | 100x85 | 80x60 | 9x12 | 36 | 118 | 150 | 190 |
| 80x36 | 100x85 | 80x60 | 9x12 | 36 | 118 | 250 | 320 |
| 100x25 | 100x85 | 80x60 | 9x12 | 36 | 135 | 200 | 250 |
| 100x30 | 100x85 | 80x60 | 9x12 | 36 | 135 | 250 | 320 |
| 100x40 | 100x85 | 80x60 | 9x12 | 36 | 135 | 300 | 380 |
| 125x25 | 135x110 | 105x80 | 13x16 | 45 | 166 | 250 | 320 |
| 125x30 | 135x110 | 105x80 | 13x16 | 45 | 166 | 300 | 380 |
| 125x40 | 135x110 | 105x80 | 13x16 | 45 | 166 | 400 | 500 |
| 150x30 | 135x110 | 105x80 | 13x16 | 50 | 189 | 400 | 500 |
| 150x35 | 135x110 | 105x80 | 13x16 | 50 | 189 | 450 | 570 |
| 150x40 | 135x110 | 105x80 | 13x16 | 50 | 189 | 500 | 630 |
| 150*x50 | 135x110 | 105x80 | 13x16 | 50 | 189 | 600 | 750 |
| 175x35 | 135x110 | 105x80 | 13x16 | 57 | 238 | 600 | 750 |
| 175x40 | 135x110 | 105x80 | 13x16 | 57 | 238 | 650 | 820 |
| 200x40 | 135x110 | 105x80 | 13x16 | 57 | 251 | 800 | 1000 |
| 200x45 | 135x110 | 105x80 | 13x16 | 57 | 251 | 800 | 1000 |
| 200*x50 | 135x110 | 105x80 | 13x16 | 57 | 251 | 800 | 1000 |
| 250x60 | 135x110 | 105x80 | 13x16 | 74 | 300 | 800 | 1000 |
Specifications
| SKU | SERIES 15 (25A) |
|---|
